French Drains, Retaining Walls, and Patio Pavers: Water‑First Hardscaping for Abbotsford and Chilliwack

In Abbotsford and Chilliwack—and across the Fraser Valley from Surrey to Hope—outdoor projects succeed or fail based on one thing: where the water goes. A patio that looks amazing in July can become a pond in November if drainage isn't designed first.

At Parmnoor Construction, we treat hardscaping as "structure + water control," not just landscaping. Every project starts with understanding how water moves across your property—because the prettiest patio in the world is worthless if your basement is flooding.

Start With the Water Map

Before we design or build anything, we assess how water behaves on your property during heavy rain. The Fraser Valley receives 1,200–2,000mm of annual precipitation depending on location, and atmospheric river events can dump 50–100mm in a single day.

What We Evaluate

Lot grading and slope direction—is water moving toward or away from the foundation? Downspout discharge points—where does roof water end up? Low spots where water pools after rain. Soil type—Fraser Valley soils range from sandy loam in parts of Langley to heavy clay in Abbotsford and Chilliwack, which dramatically affects drainage behaviour. Existing perimeter drain condition and capacity. Neighbouring property drainage patterns that may affect your lot.

French Drains: What They Do (and What They Don't)

A French drain is a subsurface drainage system designed to intercept and redirect groundwater before it reaches your foundation, saturates your lawn, or floods your patio. It's one of the most effective drainage tools—but it's not a magic fix for every water problem.

How a French Drain Works

The system consists of a trench (typically 12"–18" wide and 18"–24" deep), lined with filter fabric to prevent soil from clogging the system. Inside the trench, a 4" perforated pipe (Schedule 40 PVC or corrugated with sock filter) sits on a bed of ¾" clear crushed gravel. The pipe is surrounded by more gravel, then the filter fabric is folded over the top before backfilling with topsoil or decorative rock.

Critical Installation Specs

Minimum slope: 2% (¼" per foot) toward the discharge point—water doesn't move without gravity. Pipe diameter: 4" minimum for residential. In areas with heavy clay soils (common in Abbotsford and Chilliwack), we sometimes upsize to 6" for additional capacity. Gravel specification: ¾" clear crushed rock—not pit-run or mixed aggregate, which contains fines that eventually clog the system. Discharge: the drain must outlet to an appropriate location—a dry well, a swale to the street, or a connection to the storm system where permitted by your municipality.

What French Drains Don't Fix

Surface water from improper grading (you need regrading, not a French drain). Roof water from disconnected or missing downspouts (fix the gutters first). Broken perimeter drain tiles around the foundation (these need direct repair or replacement). Hydrostatic pressure from a high water table (this may require sump pump systems).

Retaining Walls: Structure First, Aesthetics Second

A retaining wall is a structural element that holds back soil and manages grade changes. In the Fraser Valley's hilly terrain—especially in Mission, Abbotsford, and parts of Chilliwack—retaining walls are essential for creating usable yard space on sloped lots.

Engineering and Permit Requirements

Under BC Building Code Section 9.15, retaining walls over 4 feet (1.2m) in height generally require engineered design and a building permit. Even walls under 4 feet need proper construction—a collapsed retaining wall can damage adjacent structures, block drainage, and create safety hazards.

Building a Wall That Lasts

A durable retaining wall requires excavation below frost depth (typically 18"–24" in the Fraser Valley), a compacted granular base (minimum 6" of ¾" crushed gravel, compacted to 95% Proctor density), drainage behind the wall—a 12" gravel column with a perforated drain pipe at the base, wrapped in filter fabric, proper backfill (granular, not native clay soil pushed back against the wall), and weep holes or drain outlets at regular intervals so hydrostatic pressure doesn't build behind the wall.

Material Options

Segmental concrete block (Allan Block, Redi-Rock): modular, engineered, and available in various textures. Best for walls requiring structural performance and design flexibility. Natural stone: premium aesthetic for front-yard features and garden terraces. Requires skilled installation for structural integrity. Poured concrete: strongest option for tall walls and heavy loads. Typically engineered and formed on-site. Timber walls (pressure-treated or railway ties): budget-friendly but shorter lifespan in BC's wet climate. Not recommended for walls over 3 feet.

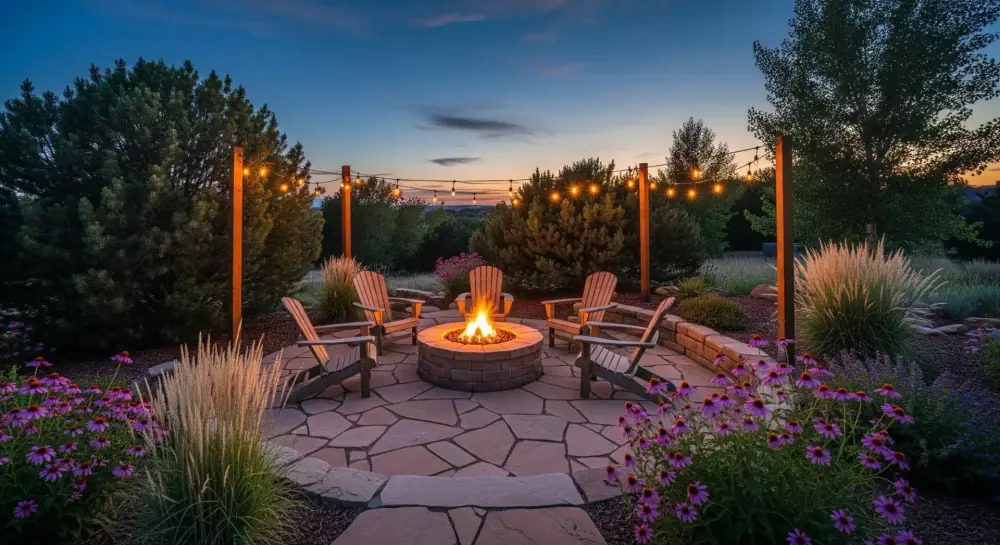

Paver Patios: Why Some Sink and Some Don't

The difference between a paver patio that stays flat for 20 years and one that develops waves and settling within 2 seasons is almost entirely about the base preparation—not the pavers themselves.

The Base System (For Fraser Valley Clay Soils)

Fraser Valley soils—particularly the heavy clay common in Abbotsford, Chilliwack, and parts of Mission—are notoriously poor for drainage and load-bearing. A paver base built for these conditions includes:

Excavation: remove topsoil and organic material to a depth of 10"–12" below finished grade. This is deeper than many contractors quote because clay soils require more base depth than sandy soils. Geotextile fabric: laid at the bottom of the excavation to prevent clay from migrating up into the granular base. Granular base: 6"–8" of ¾" minus crushed gravel, compacted in 2" lifts with a plate compactor. Each lift must be compacted before the next is added—dumping 8" of gravel and compacting once doesn't work. Bedding layer: 1" of concrete sand (CSA-grade), screeded flat to within ⅛" tolerance. Pavers: laid in pattern with 3mm joint spacing. Edge restraints: plastic or aluminum paver edging spiked into the base, not just butted against the lawn. Polymeric sand: swept into joints and activated with water to lock pavers together and resist washout and weed growth.

Foundation Protection: The Complete System

If your yard upgrade doesn't address the full water management picture, you can end up with a prettier yard and a wetter basement. Every hardscape project should integrate:

Lot grading: minimum 5% slope away from the foundation for the first 6 feet (BC Building Code Section 9.14.6). Downspout routing: extensions or underground piping to move roof water at least 6 feet from the foundation. Surface drainage: swales, channel drains, or grading that directs surface water to designated collection or discharge points. Subsurface drainage: French drains or curtain drains where groundwater movement threatens the foundation.

Seasonal Maintenance for Fraser Valley Hardscaping

Even well-built hardscaping needs periodic attention in BC's climate. Our recommended annual maintenance includes clearing debris from French drain outlets and catch basins (fall, before heavy rains). Checking paver joints for polymeric sand washout and re-sanding where needed. Inspecting retaining wall drainage outlets for blockage. Verifying downspout extensions and splash blocks are in place and directing water away from the foundation. Checking for settling, heaving, or movement in retaining walls and paver surfaces after winter freeze-thaw cycles.

Make Your Yard Usable Year-Round

Contact Parmnoor Construction for a drainage-first hardscape plan. We serve the entire Fraser Valley from Surrey to Hope.
